Home ProductsPanel Printer

Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product

Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product

    • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product
    • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product
    • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product
    • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product
    • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product
    • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product
  • Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product

    Product Details:

    Place of Origin: Xiamen
    Brand Name: GOOJPRT
    Certification: CE/ROSH/FCC
    Model Number: QR703

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: The more qty, the better price
    Packaging Details: Carton
    Delivery Time: 5day shipping
    Payment Terms: T/T,Paypal
    Supply Ability: 50000pcs/month
    Minimum Order Quantity: The more, the better
    Contact Now
    Detailed Product Description

    Insert mechanism, embedded mechanism, thermal printer mechanism, electronic product





    Product Features:
    Beautiful shape
    Easy paper
    Low noise, thermal printing
    Optional different interface

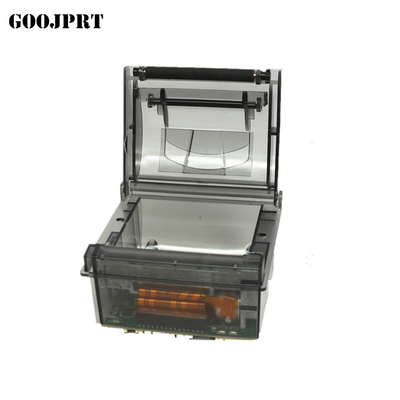

    Replace the paper structure of the front panel
    Be easily embedded in a variety of different instruments and meters
    Embed depth 32/36 mm

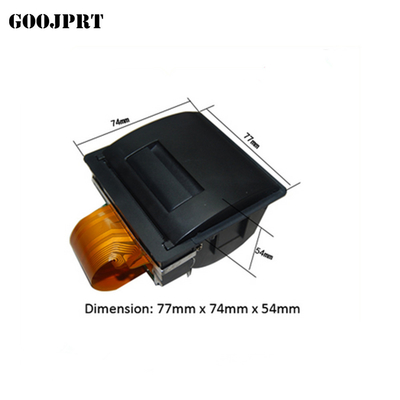

    Dimensions (W x D x H) 103 × 57 × 50 MM
    Install inlet size 111 × 65 MM

    Applications:
    Taxi meter
    Logger
    Self-service equipment
    Ticket Vending Machine
    Medical devices
    Weighing
    Electronic Instruments
    Test Equipment

    Specifications:
    Print method Thermal
      Print speed 50 - 85 mm / sec
      Resolution 8 dots / mm, 384 dots / line
      Effective print width 48 mm
    Character set ASCII character codes, GB2312-80 (Chinese)
      Print Font ANK: 5 × 7, Chinese: 12x24, 24 × 24
    Paper Size Paper Type Thermal paper rolls
      Paper width 57.5 ± 0.5 MM
      Paper thickness from 0.06 to 0.07 millimeters
      Roll core diameter 13 mm (minimum)

    Maximum roll diameter: 23 mm
    Reliability Mean Cycle Between Failure (MCBF) 500 million lines

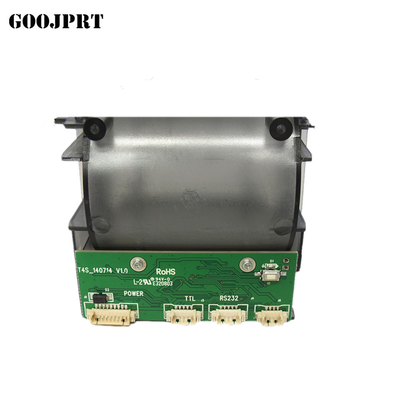

    Interface RS-232C/TTL
    Embed depth 32/36 mm
    5V-9V DC power supply
    Physical characteristics Dimensions (W x D x H) 103 × 57 × 50 MM
      Install inlet size 111 × 65 MM
      Colour Black / White
    Environmental Operating Temperature 5 ° C ~ 50 ° C
      Operating humidity 10% to 80% 1
      Storage temperature -20 ° C ~ 60 ° C
      Storage humidity 10% to 90
